Brand: Sollektor
Type: Endlessly Single Mode Fiber
Contact: Jeff Wang 13162059831（Europe、Britain）
Jacky Wang 19945727170（America、Canada）
Penuel Yan 13023169048（Asia、Russia）
E-mail: info@sollektor.com

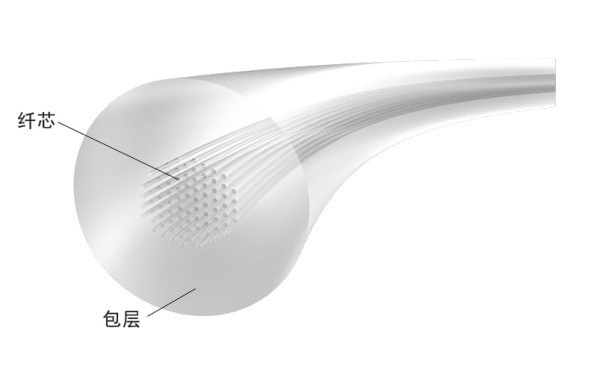

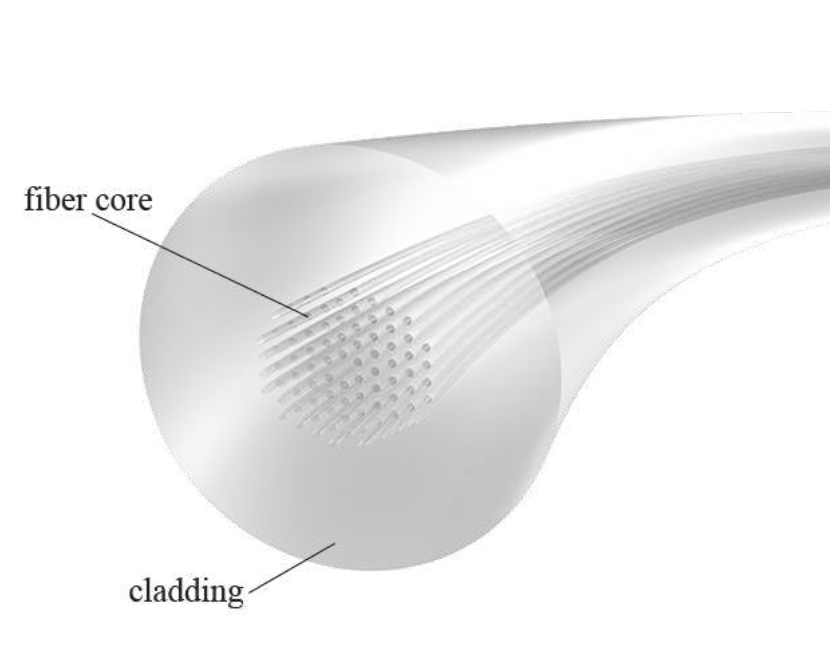

The zero dispersion wavelength single-mode characteristics of the fiber enable single-mode transmission in large mode field area, ensuring the beam quality of the fundamental mode field, independent of the fiber core size. The fiber can be applied to high-power laser transmission in large mode field area, significantly reducing the occurrence of nonlinear effects.
Medical Industry
Power Industry
Optical Communication Industry
Aerospace, Chemical, and Nuclear Industries
High-Temperature, High-Pressure, and Low-Temperature Environments
Compatible with Ethylene Oxide (ETO) Sterilization and Radiation Sterilization (Pure Silica Core)
Mining Industry, Oil and Gas Industry
Electromagnetic Radiation Environment, Underwater Use, Water-resistant
Medical Interventional Therapy with Biocompatibility
| Fiber | MOF_SC_ESM10/125/140PI | MOF_SC_ESM20/153/173PI | MOF_SC_ESM35/225/275PI |
| Core diameter | 11±1μm | 20±1μm | 35±1μm |
| Cladding diameter | 125±3μm | 153±3μm | 255±3μm |
Spectral loss | @1064 nm <20 dB/km @1550 nm <15 dB/km | @1064 nm <20 dB/km @1550 nm <15 dB/km | @1064 nm <20 dB/km @1550 nm <10 dB/km |
| MFD | 80±10μm2 | 225±30μm2 | 730±50μm2 |
| Core/Clading Material | High purity fused silica glass | High purity fused silica glass | High purity fused silica glass |
| Jacket diameter | 140±5μm | 173±5μm | 275±5μm |
| cladding non-circularity | ≤0.1 | ||
| Jacket Material | Polyimide/Acrylate | ||
| long-term working temperature | -55~300℃（Polyimide） | ||
| Short-term temperature tolerance | 350℃（Polyimide） | ||
| Prooftest | 75kpsi | ||
