Brand: Sollektor
Type: High Nonlinear Fiber
Contact: Jeff Wang 13162059831（Europe、Britain）
Jacky Wang 19945727170（America、Canada）
Penuel Yan 13023169048（Asia、Russia）
E-mail: info@sollektor.com

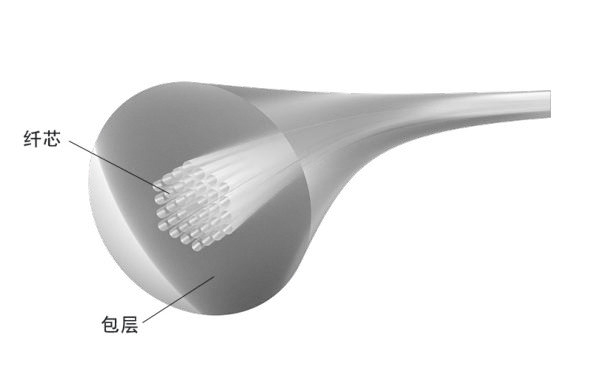

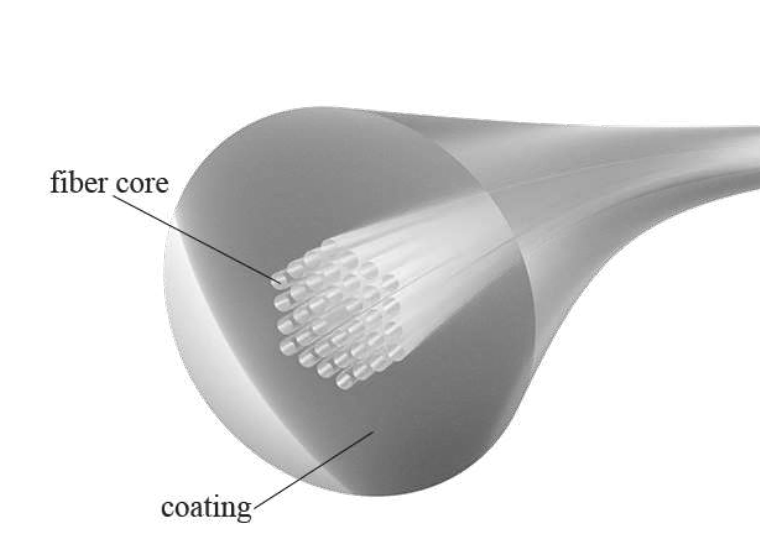

High nonlinear fiber generates pulse spectral broadening based on the nonlinear effect. Compared with other materials or conventional fibers, our structure is based on complex and varied microstructured fibers which have optimized and adjusted the excellent dispersion tuning ability to obtain efficient optical frequency conversion. The light source system made of this fiber can be widely used in fields such as spectrum analysis, fiber testing, and sensing.
Medical Industry
Power Industry
Optical Communication Industry
Aerospace, Chemical, and Nuclear Industries
High-Temperature, High-Pressure, and Low-Temperature Environments
Compatible with Ethylene Oxide (ETO) Sterilization and Radiation Sterilization (Pure Silica Core)
Mining Industry, Oil and Gas Industry
Electromagnetic Radiation Environment, Underwater Use, Water-resistant
Medical Interventional Therapy with Biocompatibility
| Fiber name | HNLF_3R_dcore | HNLF_4R_dcore | HNLF_5R_dcore |
| Core diameter | 2.0~10.0±0.3μm | 2.0~8.0±0.3μm | 1.5~8.0±0.3μm |
| Duty cycle | 0.7~0.98 | ||
Zero dispersion wavelength | 0.88、0.95、1.03、1.06、1.1±0.03μm | ||
| Cladding diameter | 125、150、180、200±3μm | ||
| Jacket diameter | 270±5μm（Acrylate）；180±5μm（polyimide） | ||
| Material | Silica | ||
| Jacket Material | Polyimide/Acrylate | ||
| Working temperature | 80℃、150℃、300℃ or 350℃ | ||
| Prooftest | 50kpsi | ||
